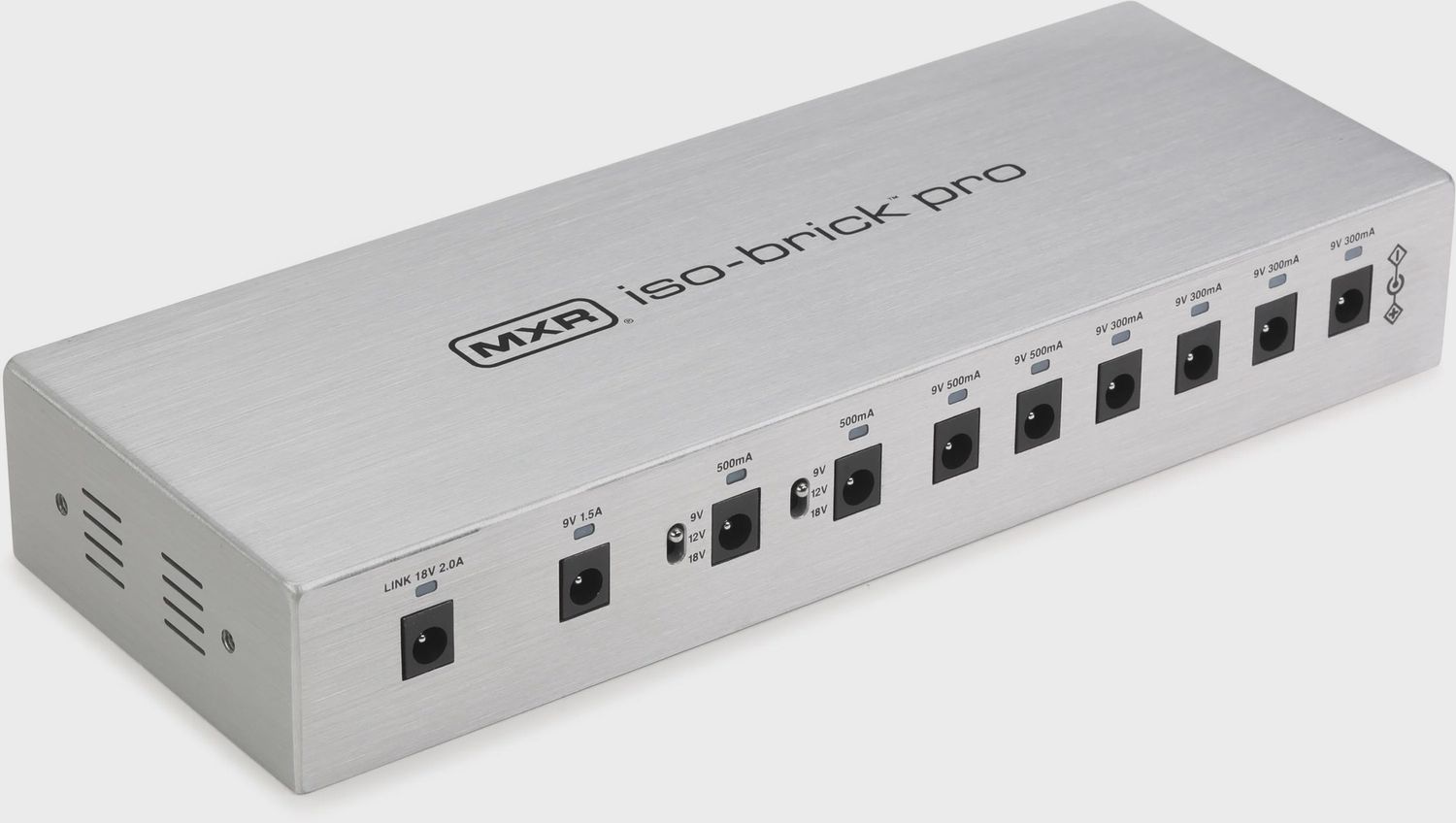

MXR Iso-Brick Pro Power Supply M242

The MXR Iso-Brick Pro Power Supply delivers clean, steady voltages to a diverse range of pedal types in a sleek form factor so that you can confidently power your entire board without any extra bulk.

POWERFUL VERSATILITY.
Every one of the MXR Iso-Brick Pro Power Supply's outputs is fully isolated to preserve signal purity and cut out environmental noise. Catering to an array of power requirements, this unit offers six fixed outputs-two 9V DC at 500mA and four 9V DC at 300mA-and two switchable 9/12/18V DC outputs at 500mA. Even high-demand multi-effects units are covered, with a dedicated 9V DC output at 1.5A for units such as the Line 6 HX Effects processor and HX Stomp amp/processor.

Expanding your setup? The MXR Iso-Brick Pro features a dedicated 18V DC link output at 2.0A so that you can seamlessly connect to a secondary power source such as the MXR Iso-Brick Power Supply or the MXR Iso-Brick Mini Power Supply.

ALL ABOARD.
With its compact, lightweight design, the MXR Iso-Brick Pro Power Supply is perfectly sized to fit under most Pedaltrain pedalboards-and it comes with all the mounting brackets and screws you need to set it up.

POWER UP WITH CONFIDENCE.
The MXR Iso-Brick Pro Power Supply will keep your effects pedals running smoothly and quietly, and its slim-yet-robust construction allows you to keep space open for all of your favorite pedals-whether low-powered analog overdrives or high-powered digital multi-effects processors. Power up with the MXR Iso-Brick Pro Power Supply.

Specifications

INPUT
- 100240V~ 50/60 Hz 1.5A

OUTPUT
- 42W MAX
- 9V 300mA (x4)
- 9V 500mA (x2)
- 9/12/18V 500mA (x2)
- 9V 1.5A (x1)
- 18V 2.0A (x1)

DIMENSIONS
- 235 (W) x 88 (D) x 37 (H) mm
- 9-1/4 (W) x 3-7/16 (D) x 1-7/16 (H) inches

WEIGHT
- 0.84 kg / 1.9 lbs.
