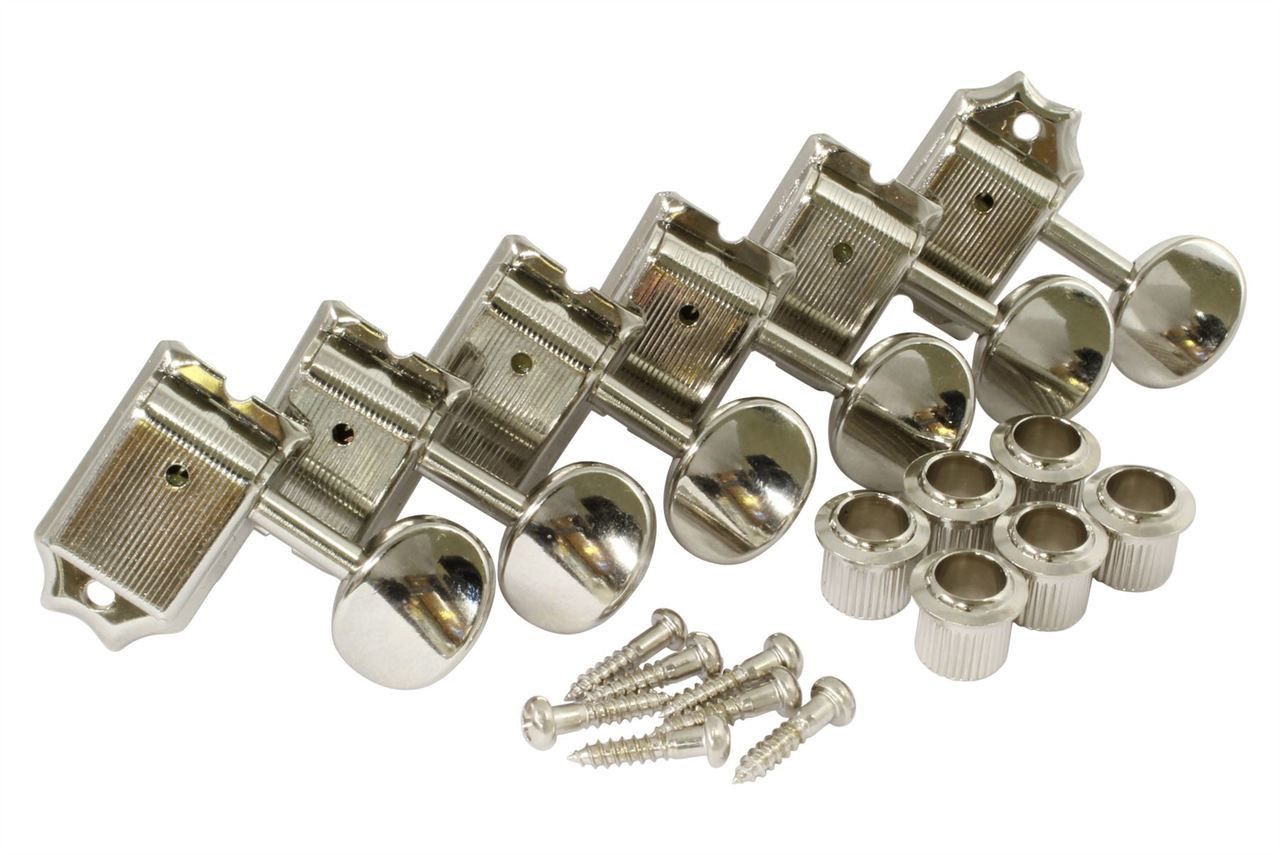

Gotoh SD91-05M Tuners 6-Inline Nickel

MADE IN JAPAN

Gotoh's SD91 tuners are a fantastic replacement or upgrade with the correct vintage 1:15 gear ratio.  Requires vintage sized 11/32" (8.73mm) holes.  Or, use conversion bushings (sold separately) to mount them into modern 10mm holes.

Package includes all necessary mounting hardware.

See alternate photo for dimensional drawing.

Orientation Guide:
Bass Side = Left side of the headstock = For a standard right-handed (or left-handed reverse) headstock
Treble side = Right side of the headstock = For a standard left-handed (or right-handed reverse) headstock

Next Gen Provided Mounting Details
Hole Size Required: 11/32" (8.73mm)
Bushing Type: Press-fit
Maximum Headstock Thickness: 17.75mm
Hole Spacing: MUST BE 23.8mm
Mount Type & Position: Multi-screw, inline (see dimensional drawing for details)
