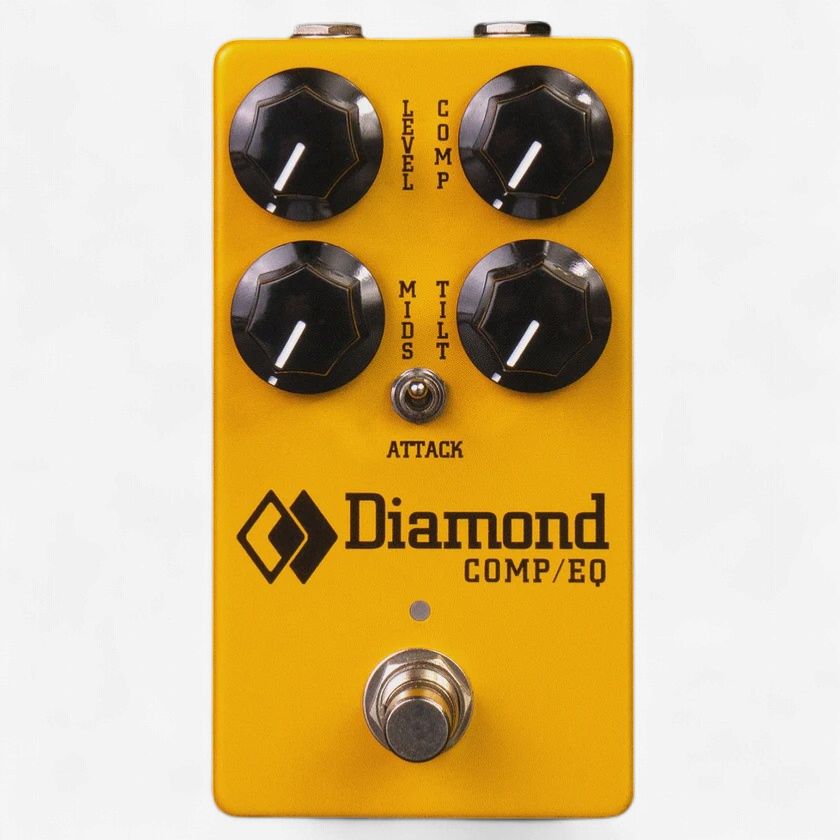

Diamond Comp/EQ

There are few compressors that are more sought after than our yellow box Diamond. This next-gen compressor maintains the classic circuit architecture while increasing range and functionality. The new EQ section allows you to sculpt your tone in the same box that squashes it (that’s a good thing). Furthermore, the attack switch allows you to go from the signature ultra-snappy Diamond comp style all the way to softer transparent compression.

Input Impedance: > 1MΩ

Output Impedance: < 10KΩ

Switching: Relay True Bypass

Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack.

Current Draw @ 9 VDC : 22mA

Tilt EQ Fulcrum Frequency: 800 Hz +|- 6 dB

Mid EQ Center Frequency: 800 Hz  +|- 10 dB

Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")

Weight: 280 g

Made In Canada
