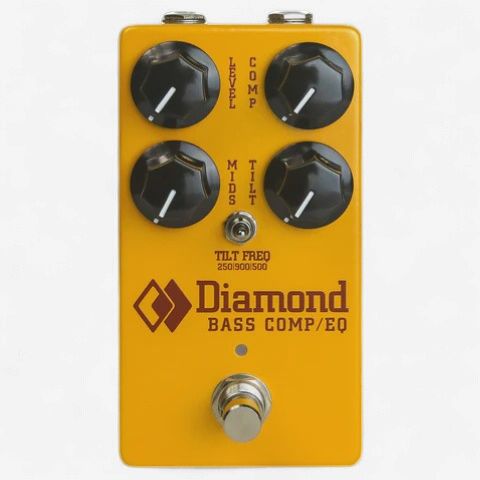

Diamond Bass Comp/EQ

There’s something truly magical about finding the compression sweet-spot on bass. Enter the Diamond Bass COMP/EQ. This bad-boy will go on your board, and never come off. This next-gen compressor maintains the classic circuit architecture while increasing range and functionality. Now armed with 3 Tilt frequencies and a +/- 10dB Mid control, the new EQ section allows you to sculpt your tone in the same box that master's it (that’s a good thing).

Input Impedance: > 1MΩ

Output Impedance: < 10KΩ

Switching: Relay True Bypass

Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack.

Current Draw @ 9 VDC : 22mA

Tilt EQ Fulcrum Frequency: 250 || 500 || 900 Hz +|- 6 dB

Mid EQ Center Frequency: 800 Hz  +|- 10 dB

Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")

Weight: 280 g

Made In Canada
