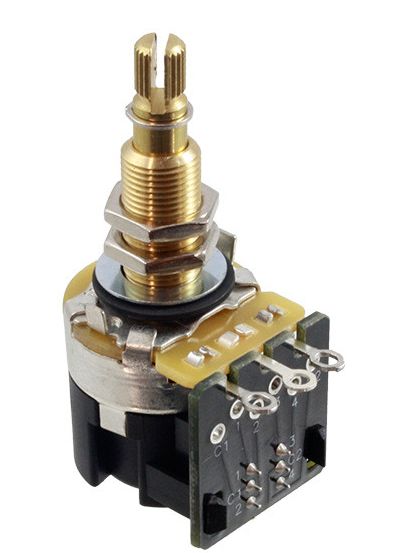

CTS Push-Pull - A500K LONG Split Shaft Pot

Taper: A / Audio / Logarithmic
Percent @ Half Turn: 10%
Resistance: 500K
Tolerance: +-20%
Power Rated: 1/4W
Shaft Type: 6mm Split Shaft
Shaft Knurl: USA / Fine / 24 spline
Shaft Length FMS (from mounting surface): 3/4"
Bushing Thread: 3/8 x 32
Bushing Diameter: 3/8"
Bushing Length: 3/8"
Body Diameter: 15/16"
Body Depth: 1"
Lug Type: Solder
Mounting Hole: 7/16"

Other info: DPDT Push-Pull Switch.  Includes 1 lock washer, 1 flat washer, and 2 nuts.  Self-lubricating brass shaft and bushing means a longer noise-free rotational life.

Tech's notes: "These have a smooth/solid rotational feel to them.  The DPDT push-pull switch is great for adding all sorts of custom wiring options."
