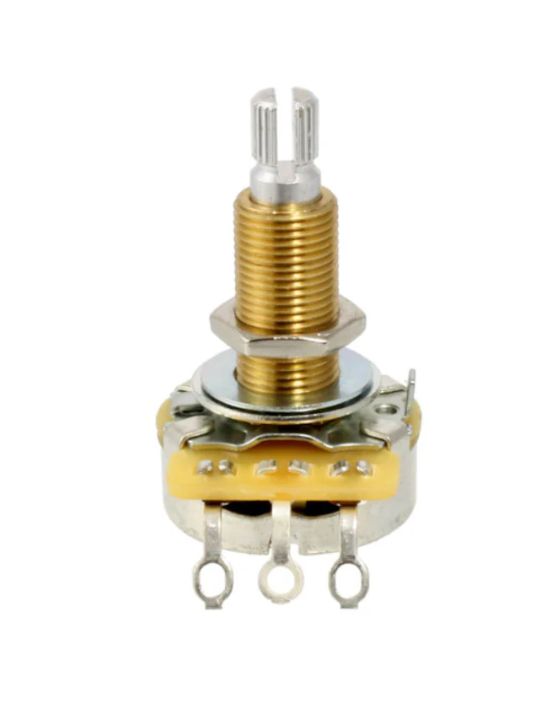

CTS - B500K LONG Split Shaft Pot - LINEAR

Taper: B / Linear
Percent @ Half Turn: 50%
Resistance: 500K
Tolerance: +-10%
Power Rated: 1/4W
Shaft Type: 6mm Split Shaft
Shaft Knurl: USA / Fine / 24 spline
Shaft Length FMS (from mounting surface): 1 1/8"
Bushing Thread: 3/8 x 32
Bushing Diameter: 3/8"
Bushing Length: 3/4"
Body Diameter: 15/16"
Lug Type: Solder
Mounting Hole: 7/16"

Other info: Includes 1 lock washer, 1 flat washer, and 2 nuts.  Self-lubricating brass shaft and bushing means a longer noise-free rotational life.

Tech's notes: "The extra long shafts are commonly needed for Gibson style guitar bodies with thick body tops."
